The rise of natural refrigerants
Driven by environmental concerns, legislation is pushing for a massive change in the refrigerants market, phasing out traditional refrigerants in favor of alternatives with lower global warming potential.
Key points
Key points
- Market transition for industries that rely on refrigerants with high global warming potential seems inevitable.
- Adopted in 1987, the Montreal Protocol called for the phaseout of chlorofluorocarbons because of their damage to the ozone layer.
- The Kigali Amendment, adopted in 2016, establishes a phaseout of super-polluting hydrofluorocarbons to alternatives with low global warming potential to avoid the worst impacts of global warming.
- CO2-based cooling systems are a promising alternative to traditional solutions since they have no negative impact on the ozone layer and negligible global warming potential.
Forty years after continuous depletion of the stratospheric ozone led to the discovery of the ozone hole, new regulation to limit the global warming potential (GWP) of today’s refrigerants is about to transform the industry once again. This regulation change is expected to increase the use of low- to zero-GWP refrigerants,1 with applications such as transcritical CO2 systems expected to grow from USD 48.5 billion in 2023 to USD 140.9 billion in 2030.2
The rise of chlorofluorocarbons
The rise of chlorofluorocarbons
From the first known artificial refrigeration demonstrated by William Cullen at the University of Glasgow in 1748 to the launch of General Electrics’s “Monitor-Top” in 1927, significant progress has been made in the development and use of refrigerants. Yet until 1929, refrigeration systems commonly used toxic gasses such as ammonia, sulphur dioxide, and methyl chloride as coolant, with the latter being a cause of fatal accidents due to leakage.5
A collaborative effort between General Motors, Du Pont, and Frigidaire to find safer refrigerant led Thomas Midgley Jr. to the discovery of Freon® in 1928, a type of chlorofluorocarbon (CFC),6 whose adoption in cooling systems soon became widespread.
The Montreal Protocol and the Kigali Amendment
The Montreal Protocol and the Kigali Amendment
While CFCs are safe to use in most applications and inert in the lower atmosphere, they decompose in the upper atmosphere or stratosphere. In 1974,8 Professor F. Sherwood Rowland and Dr. Mario Molina proved that CFCs could be a major source of inorganic chlorine in the stratosphere, with some of the released chlorine actively destroying ozone in the stratosphere. The depletion of the protective ozone layer in the atmosphere caused by CFCs became known as the ozone hole.7 This set up the context for the Montreal Protocol signed in 1987, with the overall goal of controlling the production of ozone-depleting substances, particularly the production of CFCs.
The harmfulness of CFCs and the Montreal Protocol requirement to stop their production by the year 2000 meant that substitute substances were required, which came in the form of hydrochlorofluorocarbons (HCFCs), later substituted by hydrofluorocarbons (HFCs).
While the adoption of CFCs in the 1930s was a reaction to safety concerns, the adoption of HCFCs and HFCs was a response to the ozone depleting potential (ODP) of CFCs. The Kigali Amendment (2016) phases down the production and consumption of HFCs with high GWP9 such as HFC-134a, a potent greenhouse gas commonly used in refrigeration and air conditioning whose warming potential is 1,470 times that of CO2.10

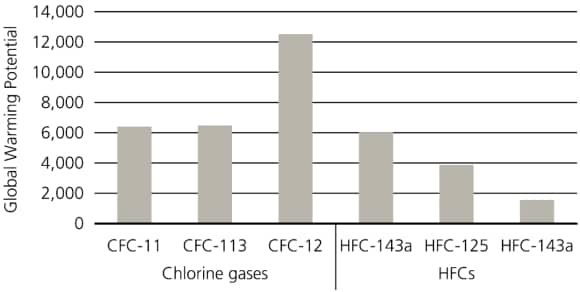

Global warming potential of selected ozone-depleting substances and substitute gases
Natural refrigerants
Natural refrigerants
Ammonia, carbon dioxide, and hydrocarbons are the most frequently used natural refrigerants, whose main advantage lies in their relatively low to non-existing environmental impact from an ODP and GWP standpoint.
In addition, these refrigerants commonly have a well-developed supply chain that enables low costs, a pre-requisite for mass adoption.
Ammonia – also known as R-717 – has been the backbone of the cold storage and food processing industry since the early 1900s, which has recently made in-roads into applications in non-industrial settings.11 Ammonia compares well in terms of operating performance; however, it carries the risk of toxic leaks, thus limiting the settings in which the application is socially accepted.
Carbon dioxide (CO2) – or R-744 – was first used in a refrigeration system in 1879. Despite the system’s popularity in military and shipping applications, it was largely abandoned due to technical issues and heavy promotion of CFCs by the chemical industry.12
Dynamic growth of CO2-based cooling systems
Dynamic growth of CO2-based cooling systems
One of the key barriers to a wider adoption of CO2 refrigeration systems is the concern around the efficiency of these systems in warm climates. Given the relevance of energy costs in industrial and commercial refrigeration, we believe that removing this barrier might be a significant catalyst for the growth of CO2 refrigeration systems.
Innovations in CO2 refrigeration systems are believed to be able to deliver double-digit energy efficiency improvements,13 a significant figure in applications such as supermarkets where refrigeration systems typically represent 40% of supermarket’s energy consumption.14
CO2-based systems can also benefit from the sustainability targets of retailers, especially in under-penetrated markets such as North America. While in Europe CO2-based systems have an estimated penetration rate of 22.9% (2022), in North America the adoption is still in a nascent stage, with a penetration rate of 4.1%. The 80% annual increase in the use of transcritical CO2-systems by food stores in North America15 clearly points to what we believe is a structural growth opportunity for natural refrigerant solutions.
1 Alfa Laval (2021). Navigating a changing refrigerants market. Link
. Accessed on 16.09.2024
2 Refindustry (2023). Transcritical CO2 Market Size, Analysis Report. Link. Accessed on 16.09.2024
3 Britannica (n.d.). Definition of ‘refrigeration’. Link. Accessed on 09.09.2024
4 Delphos Canal Commission (2013). The Monitor Top Refrigerator. Link. Accessed on 11.09.2024
5 Global Monitoring Laboratory (n.d.). Teacher Background. The Chlorofluorocarbons. Link. Accessed on 16.09.2024
6 Global Monitoring Laboratory (n.d.). Chlorofluorocarbons (CFCs). Link. Accessed on 16.09.2024
7 Global Monitoring Laboratory (n.d.). What are the CFCs? Link. Accessed on 11.09.2024
8 UN environment programme. Ozone secretariat (n.d.). The Montreal Protocol on Substances that Deplete the Ozone Layer. Link. Accessed on 09.09.2024
9 Chemical Sciences Laboratory (2022). Twenty Questions and Answers About the Ozone Layer: 2022 Update. Question 19. Link. Accessed on 09.09.2024
10 United States Environmental Protection Agency (n.d.). Refrigerant Safety. Link. Accessed on 09.09.2024
11 IIAR (n.d.). The History of Ammonia Refrigeration. Link. Accessed on 16.09.2024
12 SINTEF (2020). The story of CO2 as a refrigerant. Link. Accessed on 09.09.2024
13 ATMO (2023). Natural Refrigerants: State of the Industry. Link. Accessed on 02.10.2024
14 ACHR News (2024). Supermarket Scorecard Shows Trending Adoption of R-744 in US Stores. Link. Accessed on 16.09.2024
15 ATMO Report (2023). ATMOsphere Releases 2023 Market Report Showing Robust Growth of Transcritical CO2. Link. Accessed on 11.09.2024
